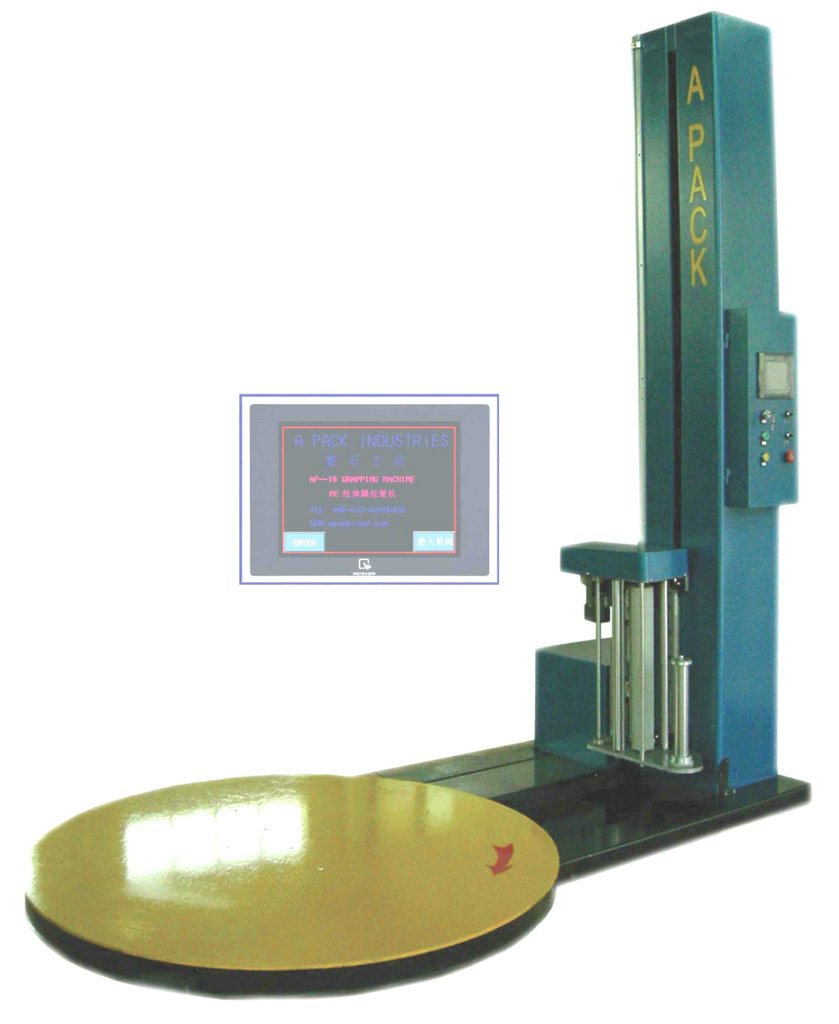

Features:
1. The control mode of “LCD Panel+ PLC+Transducer+Signal Switch” is adopted in the packer. The main electrical elements are imports with the highest quality. It is characterized by stable and reliable performance, low failure rate, and equipped with functions if auto-control and self-diagnosis of system faults.
2. It is unnecessary to appoint workers to monitor the machine since the photo electricity device shall detect the packing height and the turntable shall locate the packing object automatically. The driving mode of electric machine plus worm reducer is used. Therefore it is featured by accurate positioning and fixed direction of feed.
3. The machine is characterized by stable operation with the functions of slow startup and stoppage, which can avoid the upper articles from falling due to excess speed.
4. Using the LCD panel control, through witch a special packing mode with upper and lower layers can be easily utilized.
AP-10: A maximum pre-stretch ration of 1:3, can save costs up to 30%.
A film carriage of pre-stretch type and a mechanical tensioning device of spring are used in the machine, which ensures it to wrap tightly and the finish products to have a smooth appearance.
|
Model No. |
Turntable Dia. |
Packing Height |
Weight on Turntable |
Power Supply |
Power |
Machine Weight |
|
AP-10
APGW-10 |
1650mm |
2200-2600mm |
2000kg |
220v/380v |
1.5kw |
600-800kg |
